T30/S-N
Passenger Electric Tricycles
T30/S-N electric tricycle for adults with a compact single-rider layout, 500 W motor, up to 33 km/h speed and 150 kg rated load. Request OEM details.
Category: Passenger Electric Tricycles
Request a Quote
Selected: Navia Green
01 · Overview
Model Overview
Compare the specifications, configuration options and ordering information below.
Top Speed
33 km/h
Range
40 km
Motor Power
500 W
MOQ
Normally 30 units per model
Production Lead Time
Normally ready to ship within 20 days of receiving the deposit
Wholesale Price
Request an FOB Quote
Subject to the confirmed order. Stock availability and mixed-model orders can be discussed. Customization may affect lead time. MOQ, FOB price and lead-time guide
04 · Specifications
Technical Specifications
Specifications for product evaluation and order planning.
Performance
- Model Name
- T30/S-N
- Configuration
- T30/S-N
- Motor Specification
- 500 W
- Top Speed
- 33 km/h
- Range
- 40 km
- Climbing Angle
- 15°
Battery & Chassis
- Battery
- 48 V/60 V 20 Ah Lead acid battery
- Controller
- 12tube 30A
- Brakes (F/R)
- F&R:Drum
- Tire Size
- F&R：300-8
- Wheel Material
- Steel wheel
- Display Type
- LED digital display
- Lighting
- LED Lens Headlight
Dimensions & Supply
- Dimensions
- 1550x750x1030 mm
- Rated Load
- 150KG
- Gross Weight (Packed)
- 72 kg
- Package Dimensions (L × W × H)
- 1340x780x700 mm
- Packing Type
- Carton packing
- Rack Material
- Steel rack
- Rear Storage Box
- Without tail box
Features
Hill Hold Control | Hill Descent Control | 4-Speed Jog Mode | R/P Gear | TCS | One-key Repair | phone charging | Cruise Control
* Actual range is affected by various factors such as load, temperature, wind speed, road conditions, and riding style. The above data is for reference only. * The vehicle images shown on the page (including body decals, color schemes, component shapes, etc.) are for reference only. Due to differences in lighting conditions, screen displays, and production batches, there may be slight differences from the actual product. Confirm the final color, equipment and configuration in your order specification. * Due to continuous technical improvements, the company reserves the right to modify product parameters, configurations, colors, etc., without prior notice. Please refer to the actual vehicle for specific configurations.
05 · Product Gallery

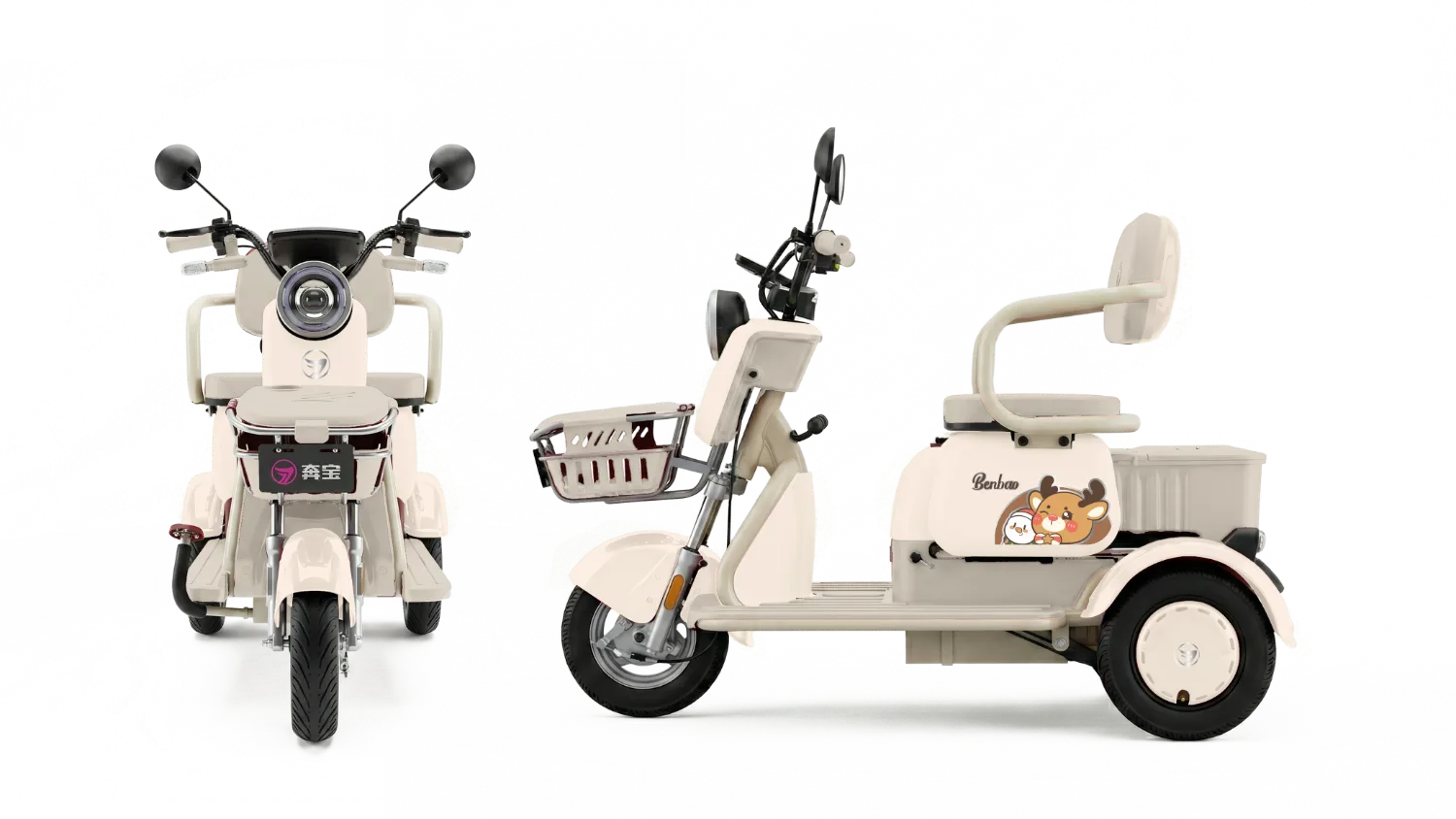

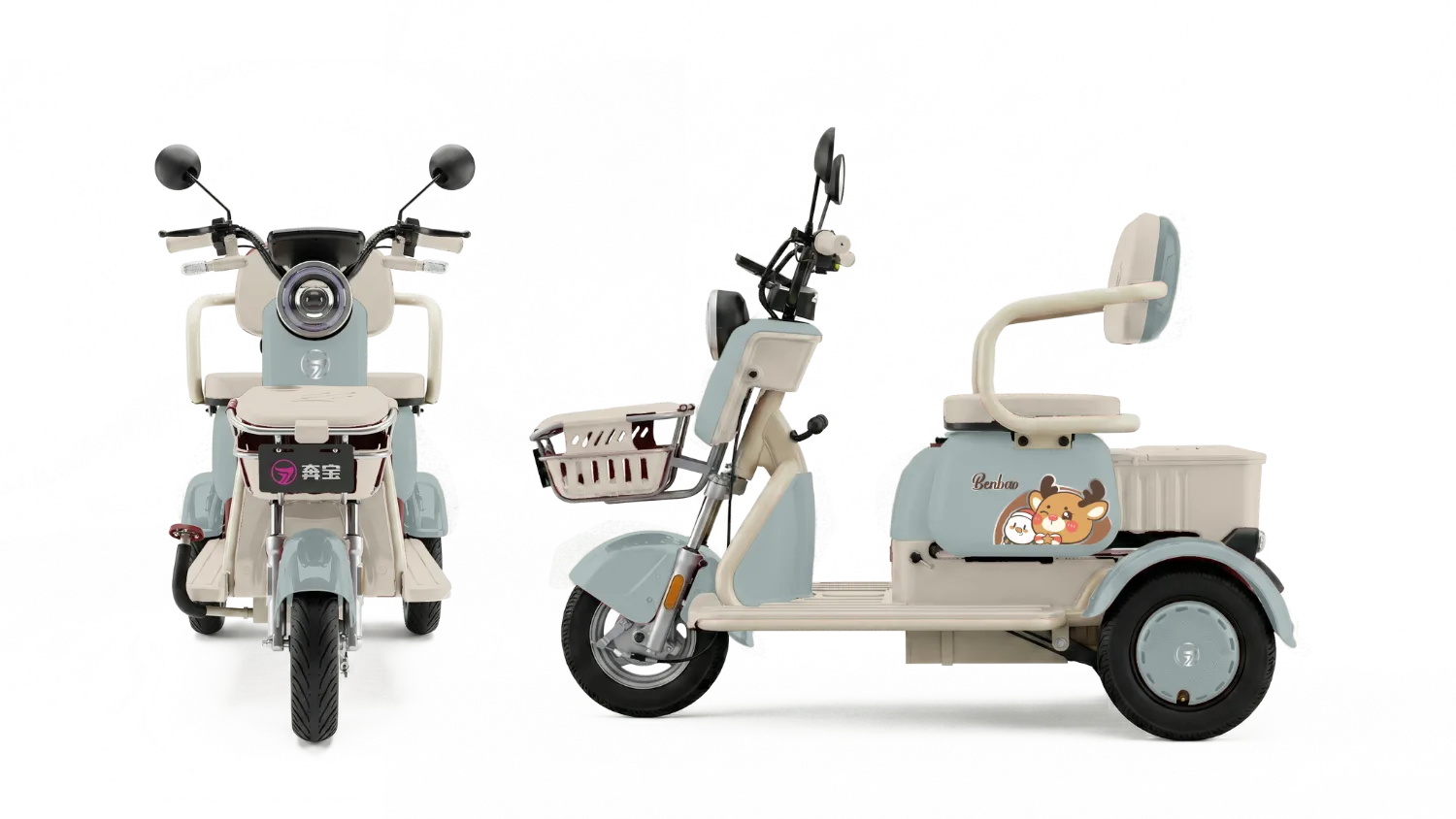

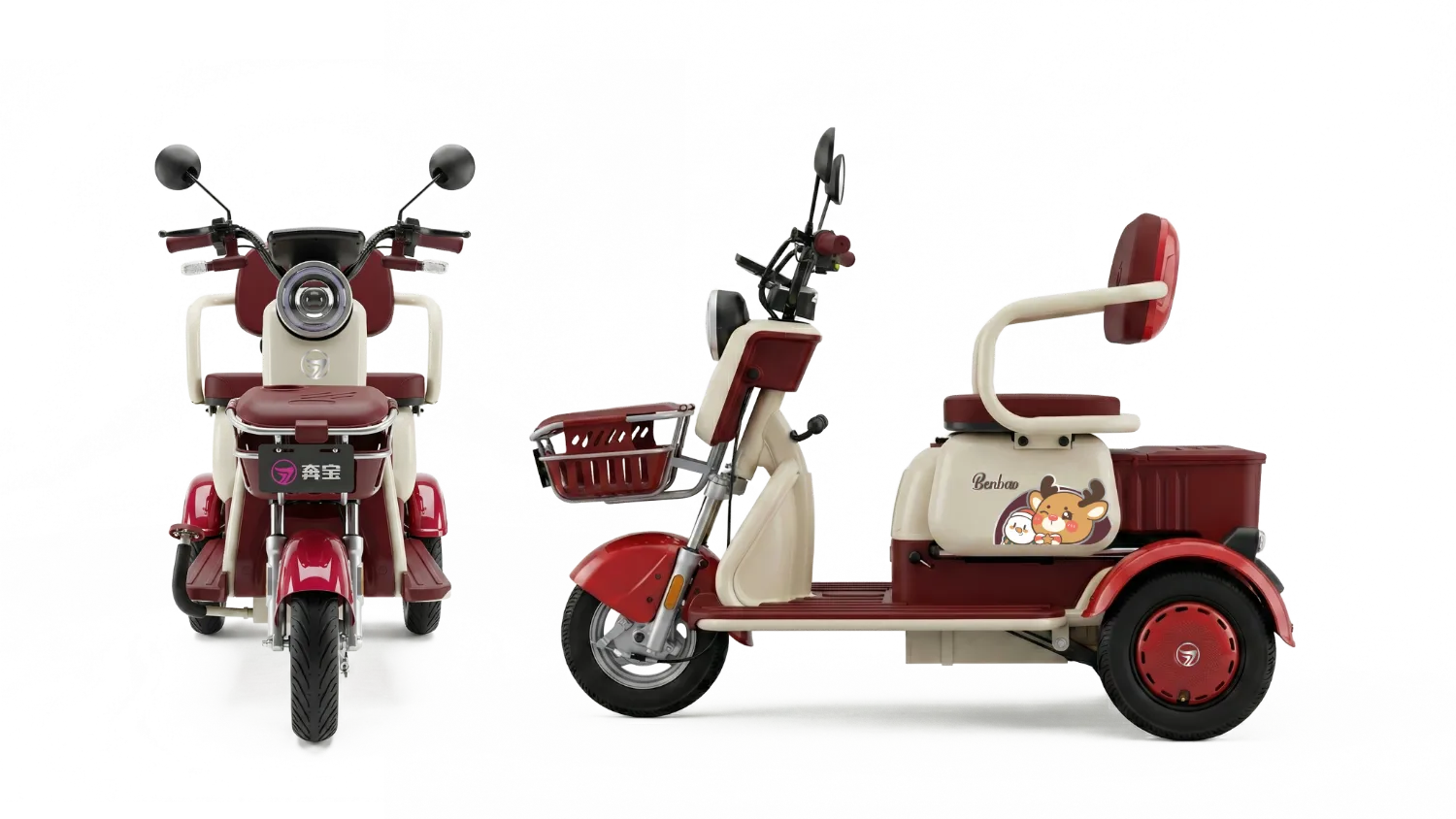

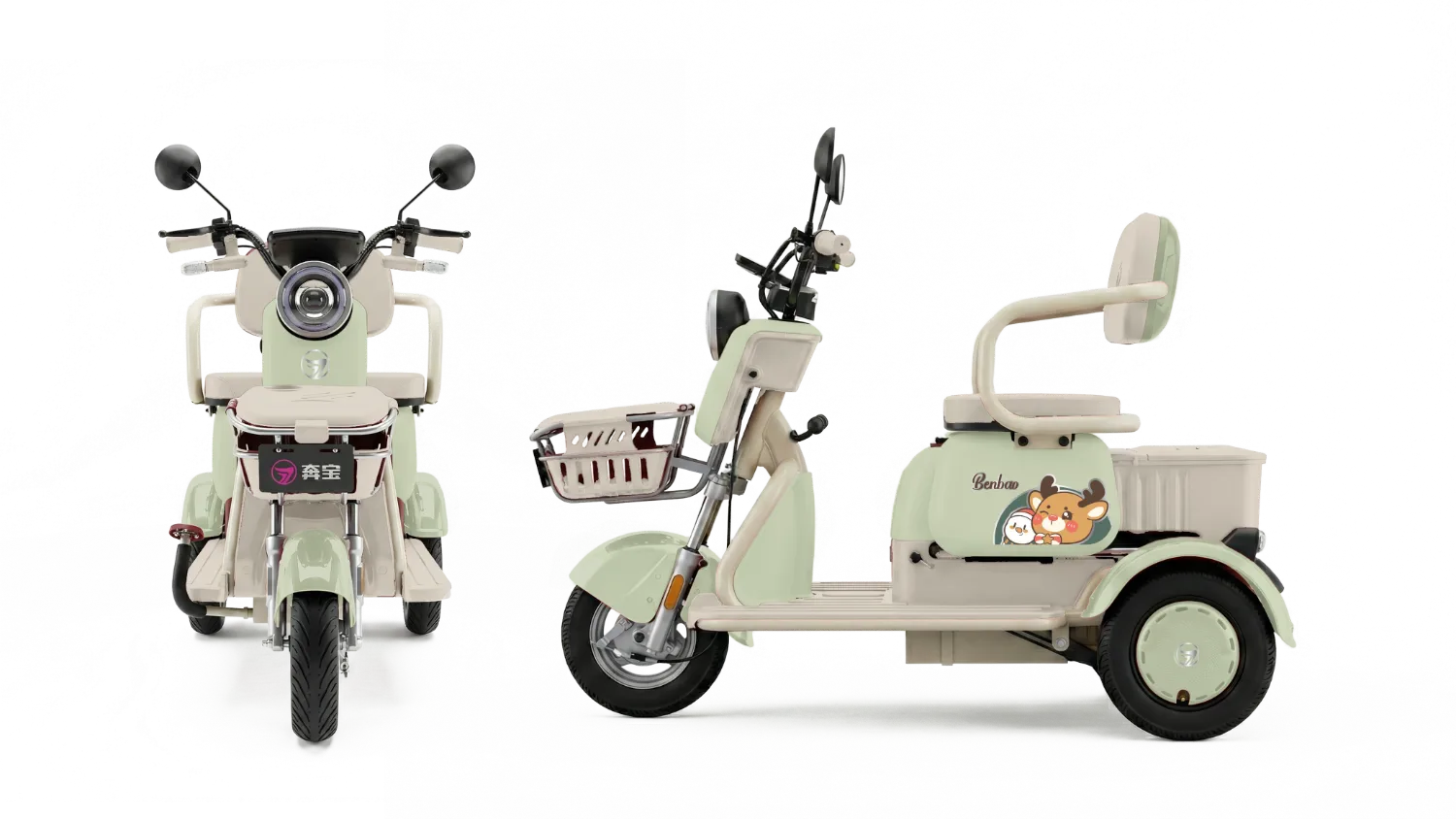

Explore T30/S-N
